Video iPod won't charge via USB, won't turn off from Rockbox

I've decided to document this problem because I've seen it several times on the Rockbox Forums.

This applies to Video iPods (5th or 5.5 generation). The symptoms are constant detection of USB power, inability to charge via USB, and inability to turn off from Rockbox.

USB power management and battery charging is done via an LTC4066 IC. The USB power part of the IC may fail so that USB power cannot be used and power is output via the IN pin (#9, 3rd from the left on the bottom). This causes the USB power input to stay at a few volts when nothing is connected, which makes other circuitry detect that USB power is present. This voltage can even be measured from the end of a USB iPod cable. This is an easy and non-invasive check which could be done first.

The iPod cannot stay off because false detection of USB power turns it on. The original firmware's "off" is actually sleep, so that still works. When Rockbox tries to turn off the iPod, it restarts.

There are several things which can be done about this:
  • Use the original firmware. Its off is sleep, and sleep is still possible.
  • Cut the trace leading to the IN pin of the LTC4066. This is what I did. The power output from the IN pin doesn't get to the USB power detection circuitry, so it's possible to turn off from Rockbox.
  • For power while connected via USB, use a USB+FireWire cable and a FireWire charger on the FireWire end. (For example, here are some cables at Amazon.)
Other possible solutions I've thought of are:
  • Replace the LTC4066. I thought this was too hard because there is a large solder tab under the chip for heat sinking and there are very tiny parts very close to the chip.
  • Cut the trace and connect a diode from the USB +5V input to OUT of the LTC4066 to restore USB charging ability. I wanted to do this but there wasn't enough space for the diode. I also had some concerns about voltage drop and the diode's heat dissipation.
  • Short the USB +5V input to ground when not using USB, eg. via a modified dock connector. It should be easy, but would waste power. I didn't try this.
  • Replace the motherboard.
  • A purely software workaround which allows Rockbox to shut down the iPod. In firmware/drivers/pcf50605.c, pcf50605_standby_mode() sets conditions which turn on the iPod. Removing the condition relating to USB charging, probably CHGWAK, would allow the iPod to stay off, though FireWire charging might not turn it on either. But be careful, because according to the comment, it is possible to turn off the iPod in a way that requires disconnecting the battery or waiting for it to discharge (a month or more I guess).

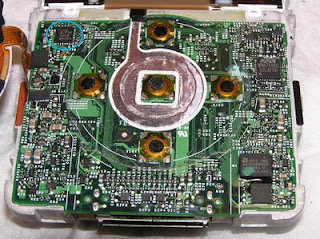

Here is a photo of the front an iPod motherboard with a blue circle around the LTC4066 and a red line showing which trace needs to be cut and suggesting a location for the cut. (Click on it to see the full-resolution version.) Note that the wheel has been swung away and that the wheel's ribbon cable passes right below the LTC4066.

Here is a closeup of the LTC4066 area. Remember that this is a small part of the iPod, and what you see here is actually very tiny.
(Both images are from another iPod which doesn't have this problem, which is okay because the LTC4066 doesn't have to look any different when it fails.)

20 comments:

Anonymous said...

Hello Boris-

I just installed Rockbox on my 80gb Video iPod yesterday and loaded several FLAC files onto it to verify that everything was properly installed and working. Upon returning to my iPod about 12 hours later, I discovered that it appears to be dead and won't charge. I assume that I've encountered the same problem that you've documented here. I was hoping to verify several things with you before I decide to dissect my iPod. How should I "cut the trace" that you've indicated? Do I simply use a hobby knife or is there a more appropriate technique? Do I understand you correctly that after I cut this trace I should be able to charge my iPod but only via a FireWire port?

Thanks,
Craig

Boris Gjenero said...

Yep, a hobby knife will work. Be careful, just cut the trace and don't cut deeper into the board as that may get to other layers. I cut via multiple light passes instead of applying enough force to cut the trace in one pass.

If I was in this situation right now, I would try the pcf50605_standby_mode() change I described.

irepair said...

It's worth adding that if your iPod refuses to go into Disk Mode and you hear a noticeable clicking sound, it's likely a faulty hard drive. If the unit is a Fourth Gen, however, the problem might just be corrosion on the HDD cable and will need cleaned periodically. Good luck & I hope this helps.

ipod wont turn on

Anonymous said...

Awesome! Just did it and my friends iPod works again. Good call on that IC messing up. All the problems it was having made sense after reading this. Thanks again!

The Overworked Barista said...

I found this elsewhere and was wondering if the ipod would then receive too much power or if it would stay regulated enough in the firewire mode.

"As long as there is power available from the USB port, the port powers the iPod not the battery. If the battery needs charging, it will charge while USB powers the iPod--mostly.

Here are the gory details: Battery charging and iPod power is controlled by an integrated circuit from Linear Technologies. Older iPods used the LTC4055. The 5G and Nano use the LTC4066. They are similar, I think.
Linear Tech doesn't let you easily see the LTC4066 data sheet. Both parts have similar pinouts so I think it's safe to assume the 4066 works much like the 4055. I think Apple might have a hand in suppressing the data sheet because the Wolfson CODEC data sheet isn't available either. GO figure--anyway...

The USB specification allows 500mA (half an Amp) to be pulled from the port. The LTC4066 manages that current so that the iPod power and battery charging current never exceeds 500mA. So... most of the time while USB power is available, it powers the iPod. If you get a high current spike like when the HDD spins up, you may have to pull some of that peak current off the battery.

The LTC4066 also monitors the battery charge state and temperature. When the battery is charged, it quits supplying juice to the battery so it's OK to leave your iPod connected to a USB port indefinitely without damage to the battery. That's my engineering view of it for what it's worth."

Boris Gjenero said...

FireWire charging is as safe as USB charging. The iPod is designed for that.

FireWire input voltage can vary widely, so it is first stepped down to around 5V using a switching power supply. Then, that gets to the LTC4066 chip, and charging is regulated in the same way. The USB power and battery charging parts of the LTC4066 are functionally separate. The charger does not depend on the USB current limit.

The data sheet for the LTC4066 is available: http://cds.linear.com/docs/Datasheet/4066fc.pdf

The iPod never uses 500 mA, even when the hard drive is spinning up. So, if 500 mA is available via USB, the iPod shouldn't need battery power. Maximum charging current plus maximum power used is more than 500 mA though, so charging can slow down while the hard drive is being used heavily.

Stelly said...

Here's the thing, though. I first used Rockbox almost 3 years ago and, just within the last year, I've been having issues not unlike everyone else here. Would it be safe to say that it is a software issue and not a hardware one?

Boris Gjenero said...

This hardware problem can be checked for independently of Rockbox. USB charging didn't work in the original firmware. The battery indicator in the original firmware sometimes showed the iPod is on external power when it wasn't. Also, I could measure voltage on the +5V line at the end of the USB cable when the cable wasn't plugged into a USB port.

wes said...

I cut the trace as described and my iPod will still mot charge I don't know what to do now.

Boris Gjenero said...

The trace cutting is only to fix the inability to turn off the iPod in Rockbox. It won't re-enable USB charging, and in fact, it creates an interruption in the circuit used for charging.

You can still use FireWire charging. When using USB for data, you can use a Y cable with the USB end connected to a USB port and the FireWire end to a FireWire charger.

If you really want USB charging, the only sure solution is replacing the LTC4066 chip. Alternatively, maybe you can connect a Schottky diode between USB +5V and OUT of the LTC4066 chip. This is just a theoretical idea; I never tested it.

Unknown said...

I've tested your diode idea and it does indeed work. The diode is used in the iPad Mini backlight circuit which I had on hand already. All you need is a fine tip soldering iron and a sharp blade to scrape the solder mask. Here's a photo with details of how I did it. https://mozzwald.com/public/images/repairs/iPod-Video-5G_No-USB-Charge-Fix.png

Vincent said...

Boris,

Will the diode method enable USB Charging using the Original Apple Firmware?

Cheers,
Vincent

Boris Gjenero said...

I think the diode method should enable USB charging in the Apple firmware. The firmware controls the USB current limit via LTC4066 pins, based on charger detection. With that diode there, full USB power will always be used, regardless of how the firmware sets up those. I don't think the firmware can disable charging. I didn't do the diode mod on mine though, so I can't try it.

Alberg said...

Hi all, I am facing a slightly different situation here with my ipod video, but I think it could be related with the LTC4066 chip as well. I couldn't find much information on internet. Basically when plugged either in the main or usb it says 'charged' but it doesn't actually charge the battery even when left for many hours. In fact when unplugged, the battery is very low and last only a few minutes. I wonder if anyone could give some insight into this, perhaps might be worth trying to replace the chip or can do something else before?

Boris Gjenero said...

Alberg, the first suspect in your situation is the battery. Maybe it's worn out so much that it can't hold much charge and/or has an overly high internal resistance to power the iPod. (With high internal resistance, the current draw from the hard drive would pull the voltage down so much a full battery would appear empty.) In Rockbox, the battery debug screen will show you battery voltage and current flowing in and out of the battery in real time, and I would look at this to help diagnose. It's also possible there is a bad connection at the battery connector, for example due to corrosion. If that is all fine, then maybe the LTC4066 chip is bad.

Alberg said...

Many thanks for your answer,Boris.I've tested the same battery with another ipod video, which is able to charge it. The battery is basically brand new and the connector looks fine too. On rockbox battery debug, it shows: power status charging,usb pwr present, battery charging. Now looking at the other ipod video (which is also newer) on debug function says: pwr status discharging, usb present, battery charged. Same thing happens whether it's plugged on usb or dock+wall. I'm confused on what it's the problem. The ipod hasn't got any other issues, it boots, syncs and plays fine. Is there any way to restore/reset/reprogram the LTC4066 chip? Should I look at the battery pin connector (it looks externally ok) or maybe replace it?

Alberg said...

It looks like basically the ipod is able to drain from the battery but unable to charge it.

Alberg said...

Hi Boris, I ended up replacing the motherboard for my ipod 5.5. Now with a brand new motherboard, Rockbox installed without problem, but I am experiencing the issue of not possible to keep it shut down. Rockbox keeps rebooting every time I switch it off or when the idle timer set it down.I am not so keen your method of cutting off the USB trace. I found in the rockbox forum and here a mention of a software patch:
https://www.rockbox.org/tracker/task/10107
https://www.rockbox.org/tracker/task/11149
This was date 2009/2010/2011
Do you know if there has been any more development regarding this issue of RB for 5.5 video?
Thanks,
Alberto

Boris Gjenero said...

Hi Alberg, 10107, shutdown via original firmware, is not designed for your problem, but could help because the original firmware may be able to shut down even though Rockbox can't. It shouldn't be hard to manually apply that patch. 11149 is a solution better solution for what 10107 was trying to fix (where attempts to power on sometimes cause an immediate shutdown as if battery is very low, requiring a hard reset to power up again). I don't think it would help your problem. I'm not aware of anything more which has been done for your problem. An option which may theoretically work is removing some flag(s) from pcf50605_standby_mode() https://git.rockbox.org/?p=rockbox.git;a=blob;f=firmware/drivers/pcf50605.c;h=a76c1dbc3c4a94c811eecf7acdfcf92df0f62202;hb=HEAD#l76 , which ought to disable power on from some sources. I have not tried this.

Alberg said...

Thank so much for your answer, Boris.
What you say make sense to me as I am able to shut it down using Apple firmware but not with rockbox. I would like to try first the method of removing some flags pcf50605.c and then 10107/11149 if that doesn't work. I am new to programming and I could not find these file on

https://www.rockbox.org/tracker/index.php?type=4

Would you mind if can you please advice how to apply those modification or patches. Thanks alot,
Alberto
